$1,599.99

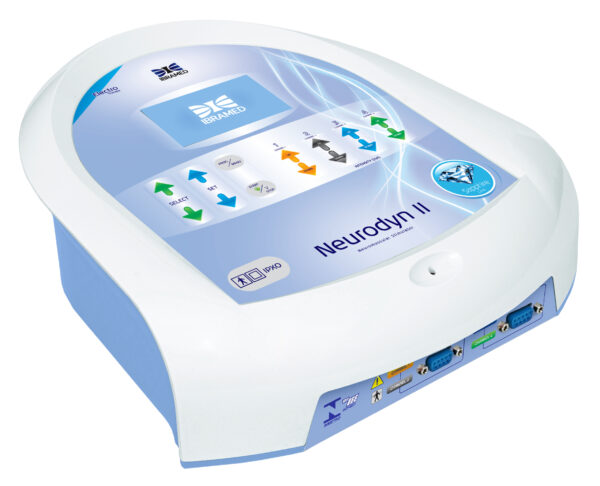

Neurodyn II is a transcutaneous neuromuscular stimulator intended for physical rehabilitation treatments, which has 32 pre-programmed and 20 private treatment protocols!!
22 in stock (can be backordered)
** THE MACHINE IS APPROVED BY THE FDA, HAS 2 YEARS OF WARRANTY, FREE TRAINING (ENG, SPA, PORT) WITH A CERTIFIED PERSON BY IBRAMED, AND WITH YOUR PURCHASE WE CAN MANAGE A BAILMENT AGREEMENT WHENEVER YOU NEED IT **

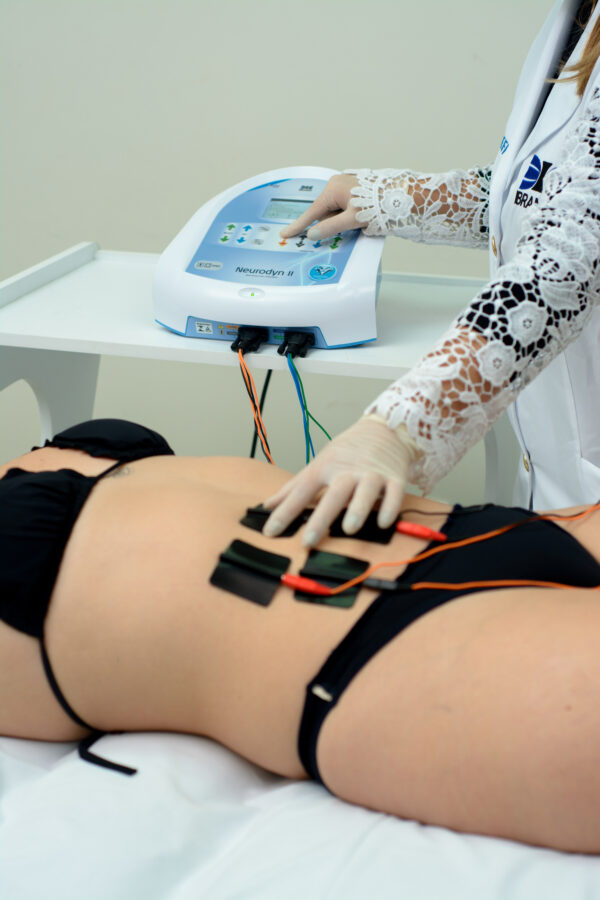

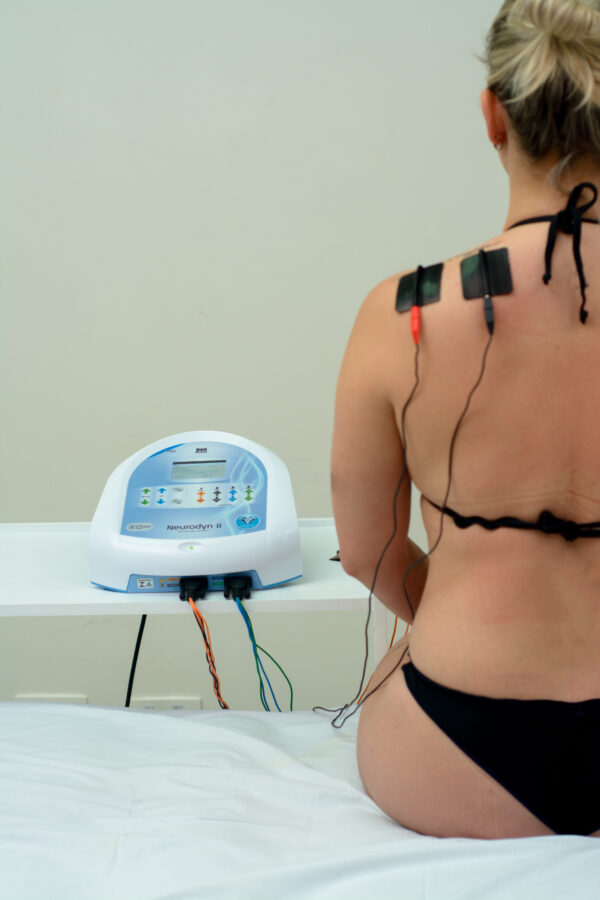

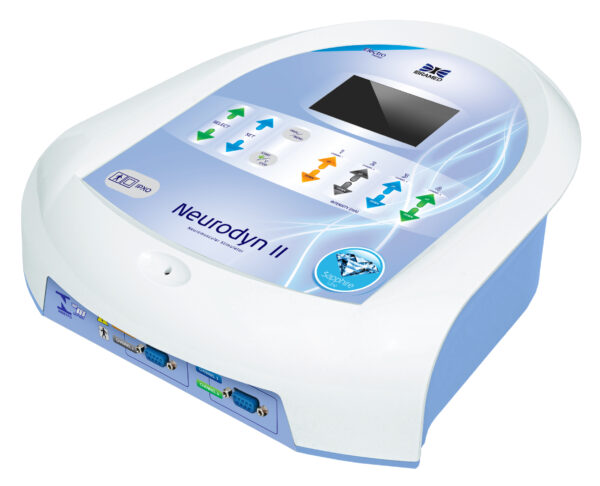

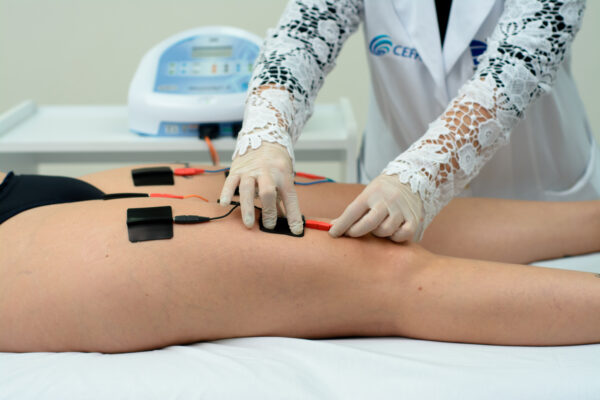

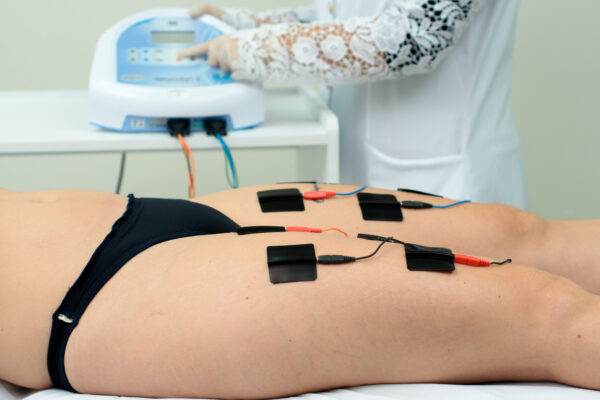

NEURODYN II transcutaneous neuromuscular stimulator is a four-channel stimulator with independent controls for current therapies using: RUSSIAN CURRENT (Medium Frequency Current modulated in Burst), FES CURRENT (Functional Electrical Stimulation), TENS CURRENT (Transcutaneous Electrical Nerve Stimulation
The equipment is for use only under the prescription and supervision of a licensed professional.
Indications
RUSSIAN CURRENT (RUSSIAN)
- Temporary relaxation of muscle spasms
- Prevention or retardation of disuse atrophy in post-injury type conditions.
- Increase local blood circulation.
- Muscle re-education.
- Maintaining or increasing range of motion.
FES CURRENT (FES)
- Stimulation of leg and ankle muscles of partially paralyzed patients to provide flexion of the foot, thus improving the patient’s gait.
TENS CURRENT (TENS)
- Symptomatic relief of chronic intractable pain.
- Post-traumatic acute pain.
- Post-surgical acute pain.
Powered muscular stimulators should be used only under medical supervision as an adjunctive therapy for the treatment of medical diseases and conditions.
Technical features
Electric Description
- Input: 100 – 240 V ~ 50/60 Hz
- Input power: 85 VA
- Electric class: CLASS II
Russian Current
- The frequency for Russian is fixed; therefore, the rate of polarity inversion is also fixed. The frequency is 2500 Hz which represents a period of 0.4ms, so this inversion occurs at every 0.2ms.
- MinimumRussian Fixed at 2500 Hz/ period =0.4ms /polarity inversion = 0.2ms
- MaximumRussian Fixed at 2500 Hz/ period =0.4ms /polarity inversion = 0.2ms
- For TENS and FES currents, the frequency can be adjusted by the user; therefore, the polarity varies according to the frequency. The frequency may be adjusted between 0.5 to 250 Hz which represents a period from 2s to 4ms, so the polarity inversion may vary between 1s to 2ms.
- MinimumTENS and FES Frequency minimum = 0.5 Hz /period = 2s / polarity inversion =1s
- MaximumTENS and FES Frequency maximum = 250 Hz /period = 4ms / polarity inversion =2ms
- Between the minimum and maximum frequency, the polarity changes by 1 second to 2 milliseconds for TENS/FES and 0.2 milliseconds for Russian.For example: (Frequency =250Hz):Period = 1/FrequencyPeriod = 1/250 Period =4millisecondsPolarity Inversion = Period/2Polarity Inversion = 4/2, Polarity Inversion =2milliseconds
- The polarity changes through the type of current and frequency chosen (i.e. Russian, TENS, or FES). There is no direct option to control the polarity. The rate charge depends on the frequency set by the User. There are no specific modes to have the polarity changed by the user.
Current Mode
- Synchronous: FES Sync (1, 2, 3 &4 channels)
- Reciprocal: FES Rec (1&3, 2 & 4 channel)
- Frequency/Phase Duration Variation: VIF (R 2-247 Hz; T 50-500 μs)
- Phase Duration: 50-500 μs
- VIF Frequency: 2-247 Hz
- VIF Phase duration: 50-500 μs
Ramp
- Rise (Time of Increase Gradient): 1-9 s
- On (Time of Muscular Contraction): 1-60 s
- Decay (Time of Decrease Gradient): 1-9 s
- Off (Time of Muscular Relaxation): 1-60 s
- Treatment Duration: 1-60 min
- Set Intensity: Individual Channel Intensity Setting
- Available on Channels: 1 or 2
TENS Symmetrical Biphasic
- Output Mode: Electrodes
- Output Intensity (CC*): 0-120 mA peak to peak
- Frequency: 0,5-250 Hz
- Phase Duration Adjustable: 50-500 μs
- Burst Frequency: 2 Hz
- Modulation of Burst Frequency: 250 Hz
- Frequency/Phase Duration Variation: VIF
- VIF Frequency: 2-247 Hz
- VIF Phase Duration: 50-500 μs
- Current ModeConventional (Normal): Tens (R 0.5-250 Hz; T 50-500 μs)Burst Modulation: Tens Burst (R 250 Hz; T 50-500 μs)
- Treatment Duration: 1-60 min
- Set Intensity: Individual channel intensity setting 1, 2, 3 or 4.
Functional Electrical Simulation
- Output Mode: Electrodes
- Output Intensity (CC*): 0-120 mA peak to peak
- Frequency: 0.5-250 Hz
Russian Current
- Output Mode: Electrodes
- Output Intensity (CC*): 0-120 mA peak to peak
Current Mode
- Continuous: Russa Cont (1, 2, 3 & 4 channels)
- Synchronous: Russa Sync (1, 2, 3 & 4 channels)
- Reciprocal: Russa Rec (1 & 3, 2 & 4 channel)
- Duty Cycle: 10%, 20%, 30%, 40% or 50%
- Burst Frequency: 10-100 Hz (steps of 10 Hz)
Ramp
- Rise (Time of Increase Gradient): 1-9 s
- On (Time of Muscular Contraction): 1-60 s
- Decay (Time of Decrease Gradient): 1-9 s
- Off (Time of Muscular Relaxation): 1-60 s
- Treatment Duration: 1-60 min
- Set Intensity: Individual Channel Intensity Setting
- Available on Channels: 1 or 2
Includes:

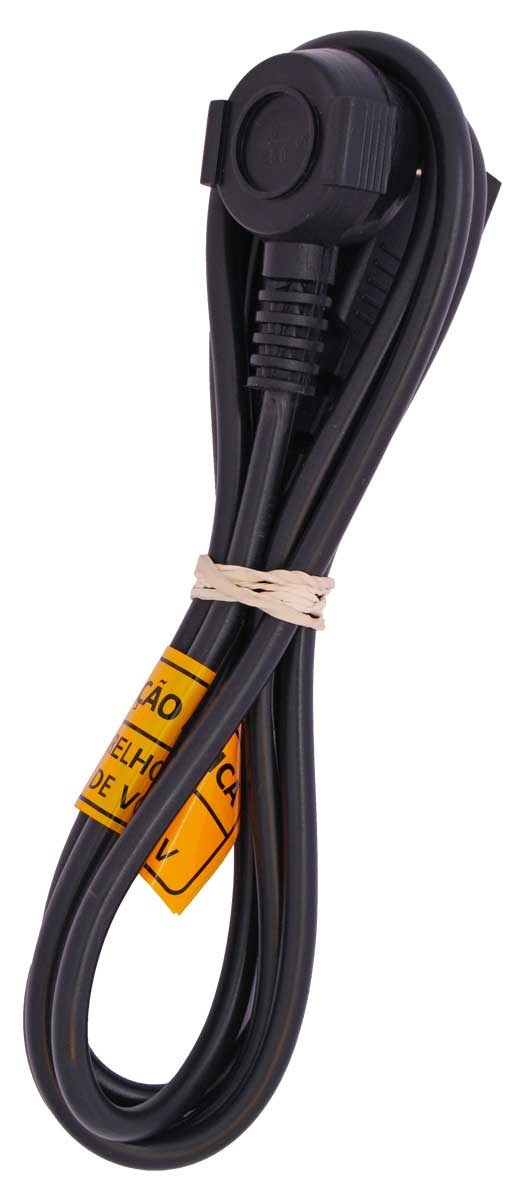

• 1 PP female IEC cable of 2 x 0.75 X 1500mm

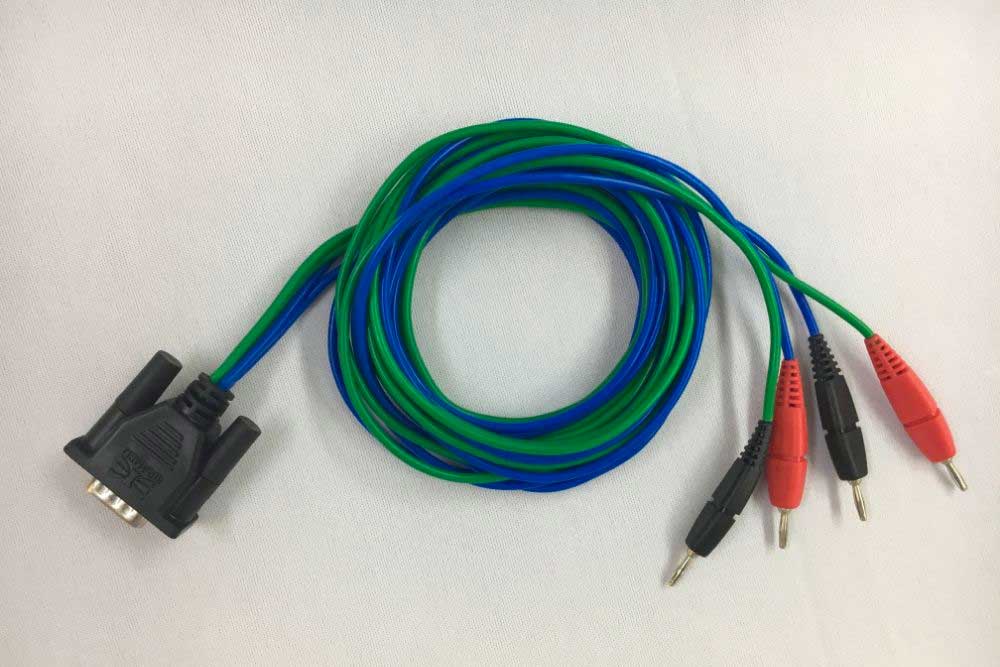

• 1 Kit of blue and green cable 09 with two ways each

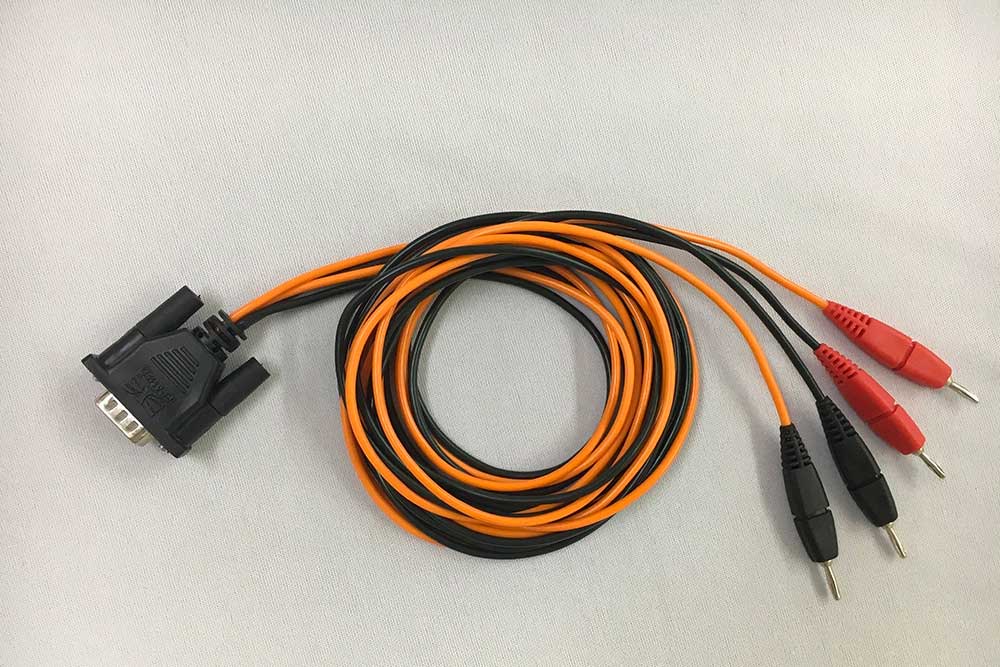

• 1 kit of black and orange cable 38 for electrostimulation with two leads each

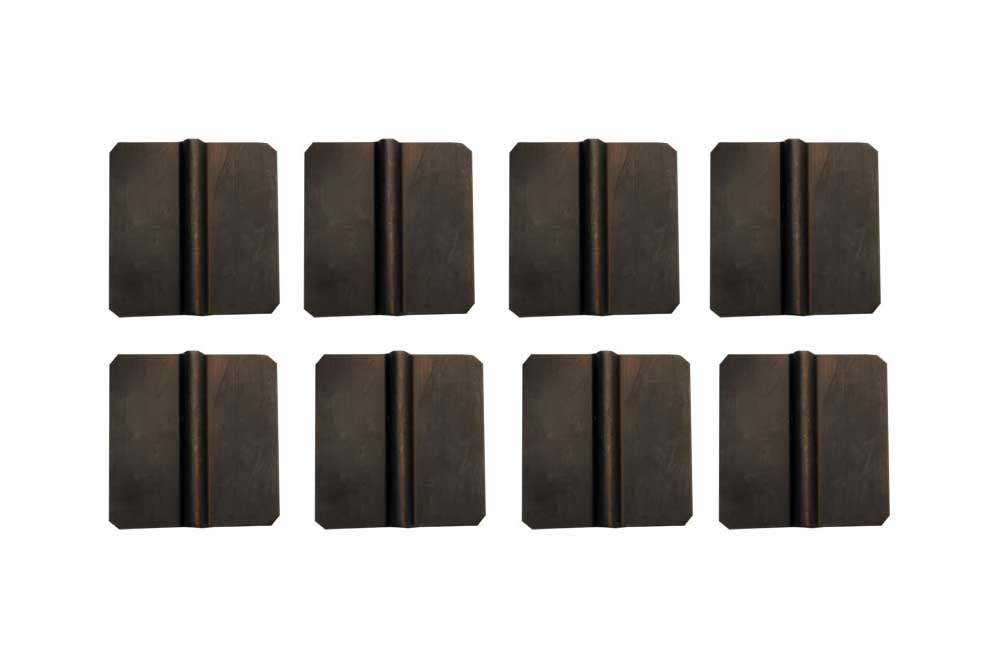

• (8) 5 x 5 cm conductive rubber electrodes

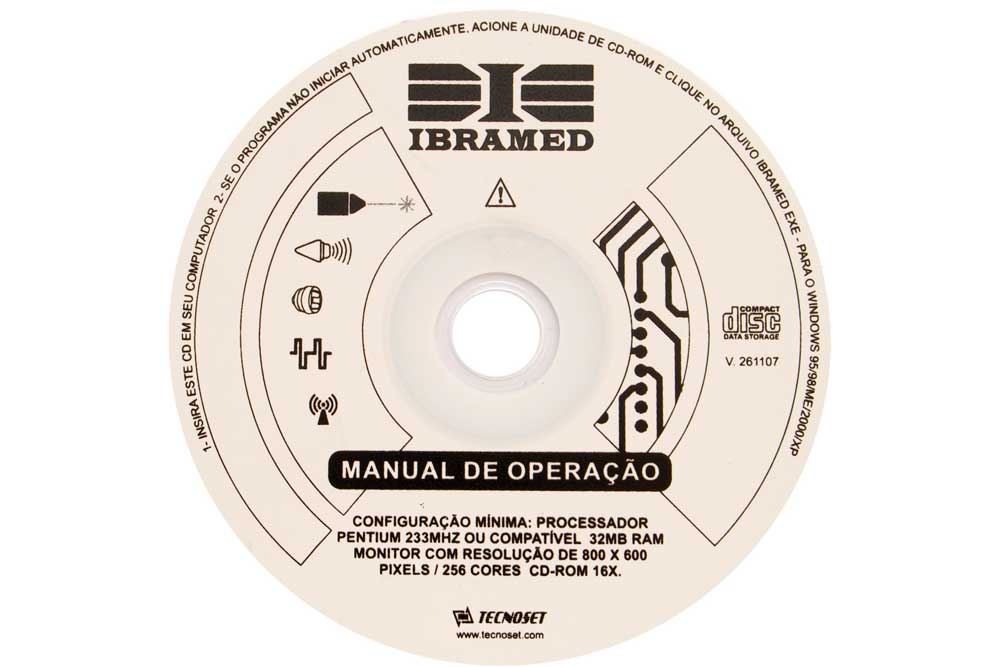

• 1 digital operations manual
• 1 fuse 20AG of 5A

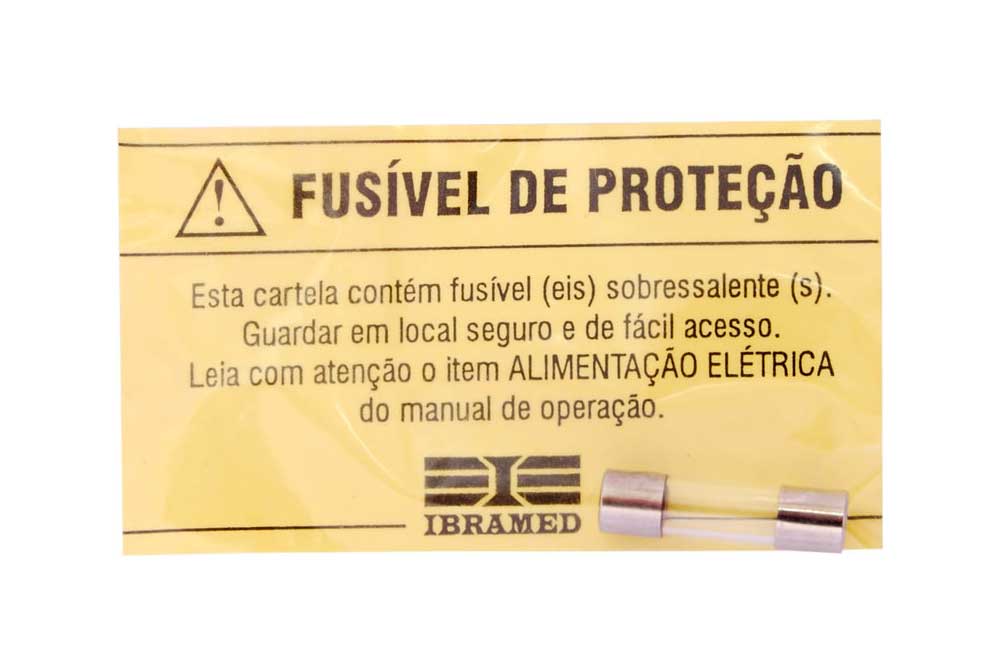

• 1 protection fuse card

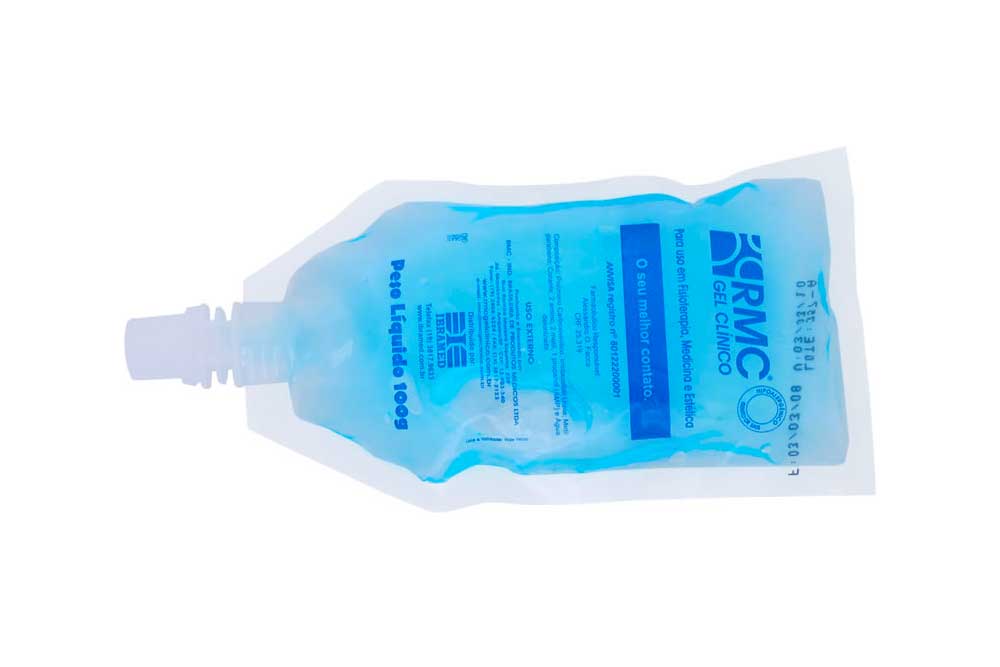

• 1 tube with cap gel. 100g – Anvisa registration nº 80122200001 – manufacturer: RMC GEL CLINICO

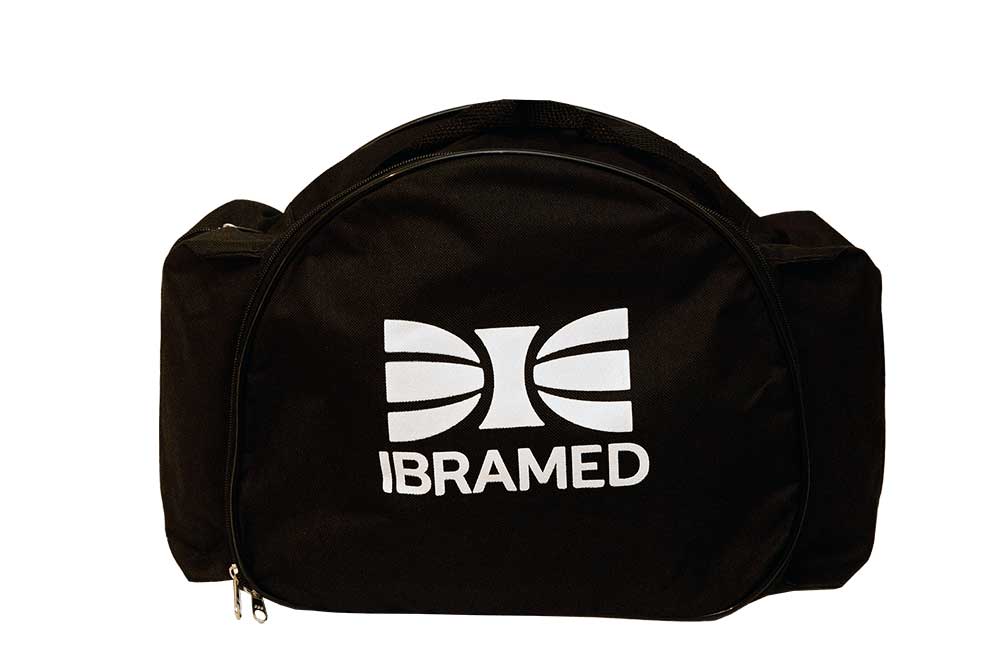

• 1 Sapphire line bag
